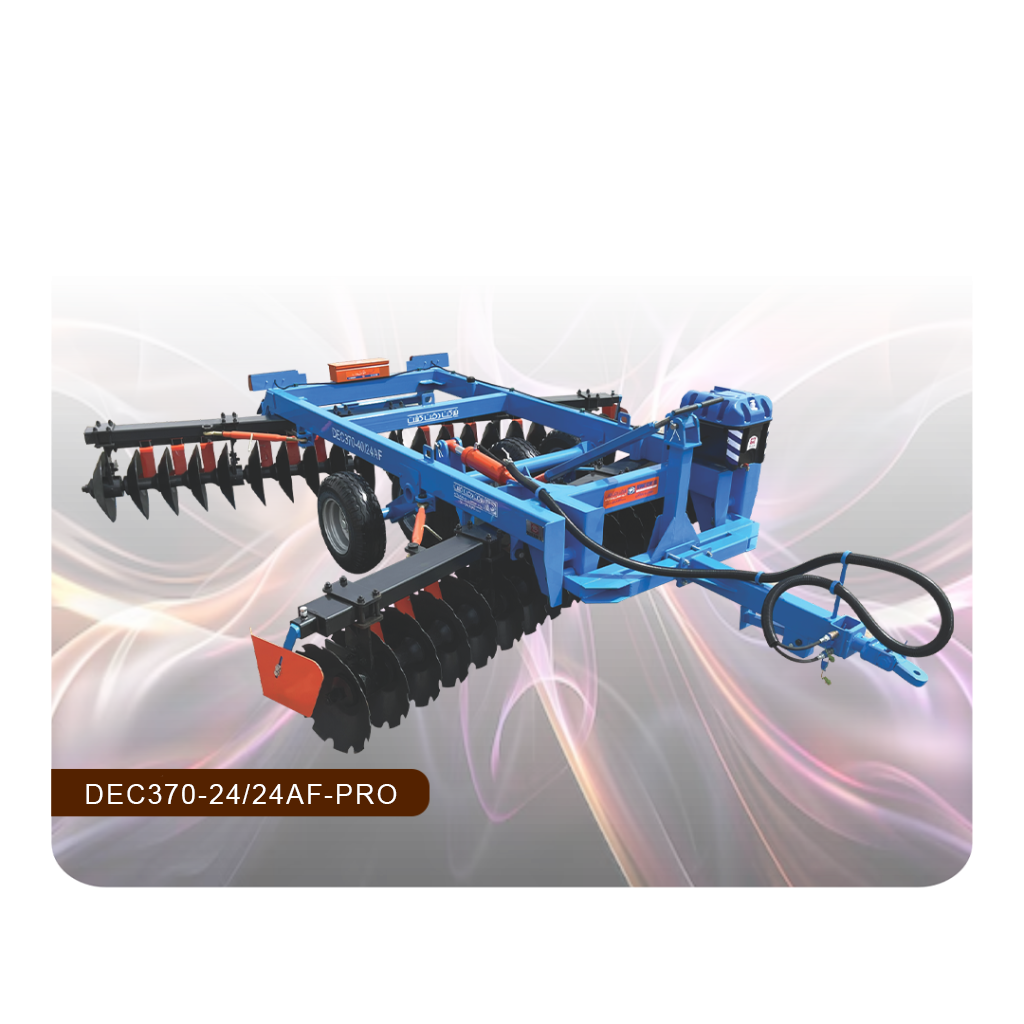

Super heavy offset disc Pro

The chassis of the machine is made of a heavy industrial can with dimensions of 200 x 100 x 8 mm
The blade chassis consists of a heavy industrial can with dimensions of 200 x 100 x 8 mm. The plates (blades) are made of wear-resistant steel made by European companies
The ability to adjust the angle of the blade set by a mechanical jack with a movement extension in four positions
The blade axis is made of a 40 x 40 mm steel square
Most of the parts are produced by CNC machining and laser cutting
It has a large wheel hub and a wide outer tire for agricultural lands
Equipped with a hydraulic hose and accessories and a shock absorber spring (which transfers the weight of the front row of plates to the rear row and acts as a vibration absorber mechanism during transportation.)
A tine system with transverse movement and two rotation modes
The distance between the blades is 230 mm
Used for primary and secondary tillage operations
For each bearing, two roller bearings and four felt bowls
Equipped with a clean mud Double-sided trowel
Equipped with leveling blade (trowel)
